ALL FURUTECH PRICES IN CANADIAN DOLLARS, NOT USD





Furutech Products - AC Receptacles & Inlets

Please email us to place your order, local pickup welcomed.

Receptacles & Inlets
Furutech Receptacle

View Datasheet

Furutech's top of the line receptacle design uses high purity, high conductive materials. The design construction results in an exceptional solid connection. All metallic parts are treated using *FURUTECH α-Alpha process (Super Cryogenic & Demagnetize Treatment). Two styles available, 24K Gold or Rhodium plated. A true audio grade product. LIQUIDATION PRICE!!!



Part No.Product Name UOM
FP-20A(R)Furutech FP20A Rhodium plated receptacle
ea

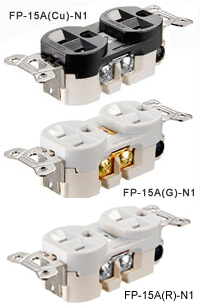

New for 2007 Furutech has upgraded the FP-15A series of High Performance Duplex Receptacles to feature a more solid construction and the tightest connections available. Improved sound and improved value for money. Non-magnetic Pure Cuprum plated Phosphor Bronze conductor(t: 0.8 mm).

Specifications:
•Accommodates cable diameters from 10 AWG to 24 AWG.
•Dimensions: 104.2mm×33.5mm (L×W), 28.2mm thick.
•Materials: Main body-Nylon and Glass Fiber
•Cover-Polycarbonate White for FP-15A-N1(G)and Black for FP-15A-N1(Cu)
•Connections: Set-screw



Part No.Product Name UOM
FP-15A(R)-N1High Performance Rhodium Plated 15A125V Duplex Receptacle
ea

FP-15A(G)-N1High Performance 24K Gold Plated 15A125V Duplex Receptacle
ea

FP-15A(Cu)-N1High Performance Pure Copper 15A125V Duplex Receptacle
ea



Non-magnetic Stainless Steel duplex outlet plate cover with dampening pad for FT-D20A-N1/ FP-15A-N1 (171mmx116mm)



Part No.Product Name UOM
102-DStainless Steel Duplex Outlet Plate Cover
ea



Many A/V enthusiasts go to great lengths in carefully setting up major system components, but pay little attention to AC power. Furutech knows that each and every part of the chain is as important as the next, so maximum attention is lavished by Furutech’s engineers on all aspects of power transfer to set new benchmarks of performance.

The new and greatly improved Pure transmission 103-D duplex Receptacle Cover Plate is finished in carbon and glass fiber with stainless steel screws. This plate cover has been designed for use with Furutech’s FP-15A-N1/FP-20A-N1/FT-D20A/FT-S20A series receptacles.

Specifications:
103 series:
Stainless Fixed Screw/Size:# M4 X 12mm(L)
Carbon fiber and Grass fiber finished Brass cover
Cover Size:71X116 mm(t:2.3mm ± 0.1mm)

Note: Receptacle and cover sold separately.



Part No.Product Name UOM
103-DCarbon Fiber Duplex Outlet Cover Plates
ea



Many A/V enthusiasts go to great lengths in carefully setting up major system components, but pay little attention to AC power. Furutech knows that each and every part of the chain is as important as the next, so maximum attention is lavished by Furutech’s engineers on all aspects of power transfer to set new benchmarks of performance.
Furutech offers several variations on these world-class, feature-laden Pure Transmission receptacles with either Rhodium or Gold plating.

• Gold or Rhodium Plated α (Alpha) Phosphor Bronze Conductor(t:0.8mm)
• Material: Nylon/fiberglass body and Poly carbonate cover; parts fixed with a 2.0mm thick stainless brace plate
• Specified for wire diameters of 4mm (set screw)
• Dimensions: 104.0mm(L) x 47.2mm(W) x 28.0mm(H)



Part No.Product Name UOM
FT-S20A (G)High End Performance 20A125V Single Receptacle Gold Plated
ea

FT-S20A (R)High End Performance 20A125V Single Receptacle Rhodium Plated
ea



FT-S20A(G) or (R) Features:
• Gold or Rhodium Plated α (Alpha) Phosphor Bronze Conductor(t:0.8mm).
• Material: Nylon/fiberglass body and Poly carbonate cover; parts fixed with a 2.0mm thick stainless brace plate.
• Specified for wire diameters of 4mm (set screw).
• Dimensions: 104.0mm(L) x 47.2mm(W) x 28.0mm(H).

102-S Features:
The new and greatly improved Pure Transmission 102-S single Receptacle Cover Plates are finished in stainless steel and employ stainless screws. Furutech Takes Resonance Control Seriously The remarkable Fo-Q Anti-Resonance Material used in these superb receptacle cover plates was developed by Prof. Masao Sumita of the Tokyo Institute of Technology, with support from the JST (Japanese Science and Technology Promotion Agency). This incredible material reduces mechanically-induced distortion using the principles of molecular friction and piezoelectric loss to remarkable effect in improving every aspect of sound and image reproduction.

• Stainless Fixed Screw/Size:M4 X 12mm(L).
• Stainless Cover /Size:71X116 mm(t:1.2mm).
• With “FO-Q” vibration damping material.

FT-S20A(G) or (R) + 102-S are sold together.



Part No.Product Name UOM
FT-S20A(G)+102-SHigh End Performance 20A125V Single Receptacle Gold Plated + 102-S Face Plate
set

FT-S20A(R)+102-SHigh End Performance 20A125V Single Receptacle Rhodium Plated + 102-S Face Plate
set



Many A/V enthusiasts go to great lengths in carefully setting up major system components, but pay little attention to AC power. Furutech knows that each and every part of the chain is as important as the next, so maximum attention is lavished by Furutech’s engineers on all aspects of power transfer to set new benchmarks of performance.

Furutech offers several variations on these world-class, feature-laden Pure Transmission receptacles with either rhodium or gold plating.

Specifications:
• Gold-plated α (Alpha) Phosphor Bronze Conductor(t:0.8mm)
• Material: Nylon/fiberglass body and polycarbonate cover; parts fixed with a 2.0mm thick Stainless brace plate
• Specified for wire diameters of 4mm (set screw)
• Dimensions: 104.0mm(L) x 47.2mm(W) x 28.0mm(H)




Part No.Product Name UOM
FT-D20A(G)High End Performance Gold Plated 20A125V Duplex Receptacle
ea

FT-D20A(R)High End Performance Rhodium Plated 20A125V Duplex Receptacle
ea




Furutech AC Inlet

10A 125V 24K Gold or Rhodium Plated AC Inlet. All metallic parts are treated using *FURUTECH α-Alpha process (Super Cryogenic & Demagnetize Treatment). Totally insulated body is constructed of Nylon. Certification: UL Recognized 10A 250V A.C. conductor.



Part No.Product Name UOM
AC-INLET(G)10A 125V AC Inlet 24K Gold
ea

AC-INLET(R)10A 125V AC Inlet Rhodium
ea



This is Furutech's Audio Grade Rhodium or Gold Plated AC inlet. All metallic parts are treated using *FURUTECH α-Alpha process (Super Cryogenic & Demagnetize Treatment). Type: 2-pole+earth, 15A 120V alternating current. Totally insulated body is constructed of Nylon.



Part No.Product Name UOM
FI-10(G)Furutech FI10 Gold 15A 120V AC Inlet
ea

FI-10(R)Furutech FI10 Rhodium 15A 120V AC Inlet
ea



Furutech FI-09 is rated at 15A 250V A.C. Type: 2-pole+earth Features a Pure Copper α (Alpha) Conductor housed in a Nylon/fiberglass body. Accommodates wire diameters up to 4mm (set-screw).
•Dimensions: 60 (W) x 30mm (D) x 36.2mm (H).
•Body length 40.0mm x 44mm diameter x 80mm overall length.



Part No.Product Name UOM
FI-09(G)High End Performance 15A IEC Inlet Gold Plated
ea

FI-09(R)High End Performance 15A IEC Inlet Rhodium Plated
ea



Hi-End Audio Grade PCOCC Rhodium or Gold AC INLET 20A 125V. All metallic parts are treated using *FURUTECH α-Alpha process (Super Cryogenic & Demagnetize Treatment). Type: 2-pole+earth, 15A 120V alternating current. Totally insulated body is constructed of Nylon.



Part No.Product Name UOM
FI-33(G)Hi-End Audio Grade PCOCC Gold Plated AC INLET 20A
ea

FI-33(R)Hi-End Audio Grade PCOCC Rhodium Plated AC INLET 20A
ea
