Xsymphony Bi-Wire Constructed with some of the finest materials. The Omega consists of 4x12awg fine strands of HIGH PURITY OFC. Each conductor has an isolated 22awg Silver plated solid HPOFC center core . ISO-CORE air form dielectric, high-density PVC jacket. A truly exceptional speaker cable with deep definitive bass, vivid vocal playback and immense musicality.
Part No. Product Name UOM OmegaBiWire Omega Hybrid HPOFC Silver Plated Core Bi-Wire feet
Furutech Speaker Cable Ratings: 13 AWG α(Alpha)Conductor(3.05 sq.mm) Features: ※α(Alpha)Conductor(3.05 sq.mm) wire which are treated with the α(Alpha) Process (Super Cryogenic & Demagnetizing Treatment). Specifications: * Conductor:α(Alpha)conductor(6 ×20/0.18mm(PE into the center)) * Insulation:Foamed Irradiated PE (White × Red) * Sheath:Flexible PVC(Purple red) * Overall Diameter:13.0 mm (13 AWG)
Part No. Product Name UOM FS-Alpha 13AWG PCOCC Speaker Cable ft
Ratings: 15 AWG α (Alpha)μ-OFC Conductor(1.767 sq.mm)Material: μ-OFC Features: ※α (Alpha) Conductor:The μ-OFC conductor wire strands treated with the α(Alpha) process Specifications: * Construction: α (Alpha)μ-OFC Conductor(μ-OFC:1pcs X1.5 mm) * Insulation-1: Teflon (Natural) * Insulation-2: PE (Red、White) * Filler: Cotton * Shield: PET / Al Tape + Alpha conductor wire (Tape Wrap + 7X0.20 braid) * Sheath: Flexible PVC(Green) * Max. Conductor Resistance: 10 Ω/km * Overall Diameter: 8.2 mm (15 AWG)
Part No. Product Name UOM FS-15S 15AWG u-OFC Solid Core Shielded ft
Ratings: 14AWG fine PCOCC α(Alpha)-Conductor Features: ※α (Alpha) Conductor wire strands which has been treated by the α(Alpha) process. Specifications : * Conductor:α-Conductor (80pcsX0.18mm)/Material:PCOCC. * Insulation : Polyethylene. * Sheath : Flexible PVC. * Max Conductor Resistance : 0.010Ω/M. * Overall Diameter :6.5mm (14 AWG).
Part No. Product Name UOM CS-10pa 14AWG PCOCC (Alpha) Conductor ft
Ratings: 13 AWG α (Alpha) Conductor(3.05 sq.mm) Features: ※α (Alpha) Conductor:The μ-OFC conductor wire strands treated by α(Alpha) process Specifications: * Construction: α (Alpha) Conductor * Insulation: Polyethylene(White、Red) * Sheath: Flexible PVC (Dark Green) * Max. Conductor Resistance: 5.4 Ω/km * Overall Diameter: 13.5 mm (13 AWG)
Part No. Product Name UOM μ-2T 13AWG Fine Stranded u-OFC Speaker Cable ft
Ratings: 13 AWG α(Alpha)μ-OFC Conductor(2.54 sq.mm)for Treble(Blue、Black) 13 AWG α(Alpha)μ-OFC Conductor(2.47 sq.mm)for Bass(Red、White) Features: ※α(Alpha)μ-OFC-Conductor---The fine μ-OFC Conductor treated with the α(Alpha) Process (Super Cryogenic & Demagnetizing Treatment) Specifications: * Conductor-1:α(Alpha)Conductor,μ-OFC (21/0.15mm+6/46/0.10mm(rope-lay stranding)) * Insulation:Poly Propylene(for Treble,Blue、Black) * Conductor-2:α(Alpha)Conductor,μ-OFC (7/5/0.3mm(concentric stranding)) * Insulation:Poly Propylene (for Bass,Red、White) * Sheath:Flexible PVC (Dark Green) * Overall Diameter:11.0 mm *Electrical Properties: Max. Conductor Resistance: 10.9Ω/km(for Treble) Max. Conductor Resistance: 10.20Ω/km(for Bass) Dielectric Strength: AC 500 V/1min. Min. Insulation Resistance: 1000 MΩ.km Capacitance (for Treble): Approx. 70 PF/M Capacitance (for Bass): Approx. 85 PF/M
Part No. Product Name UOM μ-4.1T 13AWG u-OFC Bi-Wire Speaker Cable ft
Ratings: 14 AWG α(Alpha) Conductor(1.87 sq.mm),Material:μ-OFC Features: ※α(Alpha)-Conductor---The fine μ-OFC Conductor are treated by α(Alpha) Process (Super Cryogenic & Demagnetize Treatment .) Specifications: * Conductor:α(Alpha) Conductor(μ-OFC:7/34/0.10mm). * Insulation:PE (Red、White). * Sheath:Flexible PVC(Pearl White. * Diameter:7.5 mm. * Max. Conductor Resistanc:0.0135Ω/M.
Part No. Product Name UOM FS-301 14AWG u-OFC Speaker Cable ft
Ratings: 14 AWG α-Conductor(1.98 sq.mm) Features: ※α-Conductor :The fine μ–OFC conductor wire strands and treated by α(Alpha) process. Specifications: *Conductor:α-Conductor (7X36X 0.1mm) * Material:μ-OFC * Insulation : Polyethylene * Filler:Cotton Yarn * Shield : PET/Al Tape+α-Conductor wire 7X0.2mm Braid * Sheath : Flexible PVC * Max Conductor Resistance : 0.0125Ω/M * Overall Diameter :8.0 mm (14 AWG)
Part No. Product Name UOM FS-502 14AWG Fine Stranded u-OFC Shielded ft
Ratings: 16 AWG α(Alpha)-Conductor(1.54 sq.mm) Features: ※α(Alpha)-Conductor---The fine μ-OFC Conductor are treated by α(Alpha) Process (Super Cryogenic & Demagnetize Treatment .) Specifications: * Conductor:α(Alpha)Conductor (μ-OFC:7/28/0.10mm) * Insulation:Flexible PVC (White pearl) * Max. Conductor Resistance: 0.023Ω/M * Outside Size:Diameter 4.0 × 8.0 mm
Part No. Product Name UOM FS-303 16AWG Speaker Cable ft

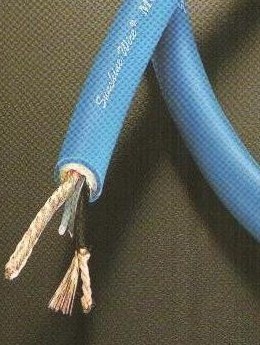

Xsymphony Speaker Cables Alpha Hybrid HPOFC Silver Plated Fine Strand with 2 x 22awg twisted pure copper speaker wire. Construction: OD: 10mm, 12awg (Copper Content). Insulation/Dielectric: Polyester Fiber, PE-Foam, PE-Rope, Paper, PVC Jacket. Output: Deep Definitive Bass, Vivid Vocal Playback, and Immense Musicality.
Part No. Product Name UOM AlphaHybrid Alpha Hybrid HPOFC Silver Plated Fine Strand w 2x22awg Twisted Pure Copper ft
