ALL FURUTECH PRICES IN CANADIAN DOLLARS, NOT USD



Furutech Terminated Power Cords

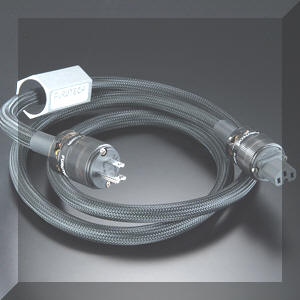

Power Reference III



The Absolute Sound 2007 Editors' Choice Award Winner



• 49-strand α (Alpha) μ-conductor・0.32mm x 3 cores, 2.5mm diameter
• Insulation: Irradiated PE (Red/Natural/Yellow) 5mm diameter
• Sheath: Two layers flexible PVC (Dark Green) 15mm diameter
• Shield: Special EMI- and noise-absorbent Formula GC-303 module
• Jacket: Nylon yarn braid approx. 16.5mm diameter
• US Connectors: IEC [FI-25 (R)] and [FI-25M (R)]
• UK,/Europe/Australian Connectors: [FI-UK1363 (R)]・[FI-E35 (R)]・[FI-AU3112 (R)]

Electrical Properties of Cable Test Method
* Max. Conductor Resistance 5.2 Ω/km JISC3005 6 20℃
* Min. Insulation Resistance 2500 MΩ-km JISC3005 9.1 20℃
* Dielectric Strength AC.3000 V/1 min. JISC3005 8

























Evolution Power



Enjoy the Music.com 2007 Best of 2007 Award


• 7 bundles 35-strand α (Alpha) Conductor・0.18mm x 3 cores, 3.69mm diameter
• Insulation: Polyethylene (Red/Natural/Yellow) 5.5mm diameter
• Sheath (Inner): Flexible PVC (Black) 13.5mm diameter
• Shield: 9 x 24-strand 0.12mm copper stranded wire braid
• Sheath: Flexible PVC (Pearl Blue) Diameter: 17.5mm
• Jacket: Nylon yarn braid approx. 18.5mm
• Connectors
• FI-11(G) IEC Connector and FI-11M(G) Power Connector or
• FI-UK(G) /FI-E11(G)/FI-AU(G) Power Connectors

Electrical Properties of Cable / Test Method
* Max. Conductor Resistance 2.2 Ω/km,JISC3005 6 20℃
* Min. Insulation Resistance 2500 MΩ‧km,JISC3005 9.1 20℃
* Dielectric Strength AC. 3000 V/1 min.,JISC3005 8



















Furutech Absolute Power Cable





2007 Excellence Award Winner

2007 Winner



•Insulation: Polyethylene (Red/Natural/Yellow) 3.5mm diameter
•Sheath (Inner): Flexible PVC (Black) 9.5mm diameter
•Shield: 9 x 24 0.12mm copper wire stranded braid
•Sheath (Outer): Flexible PVC (Dark Blue) 14.2mm diameter
•Jacket: Nylon yarn braid approx. 15.5mm
•Connectors: FI-15E(R) IEC and FI-15ME(R)















DIY Bulk Cables





















FP-Alpha 3 12AWG 5 ft:



Furutech's best, FP-a3 12AWG 20amp PC-OCC

Furutech FI-15E Copper IEC connector

Furutech FI-11M(G) Male Plug*

Temperature Controlled termination with Mundorf

Silver/Gold Solder



* 2005 Audio Excellence Award Winner



        Limited Time FREE Termination Offer
