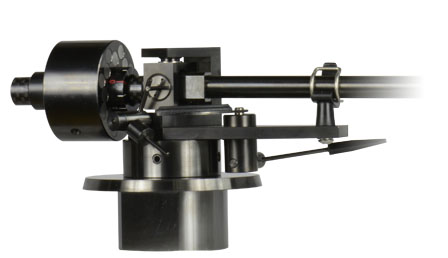

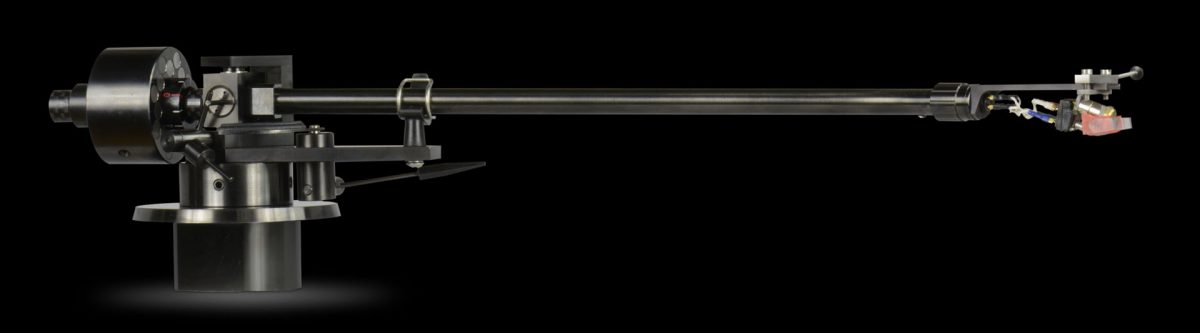

The “Jewel in the Crown” – the “premium” highest-grade model, acknowledged as delivering the most trusted performance
Features:
- In pursuit of the ultimate tone arm for further enhanced performance, we have introduced features that take you beyond the S model, as follows:
- Approximately 30 parts are coated in DLC (Diamond-Like Carbon) – the sound rise is outstanding.
- With the addition of carbon fibre to the arm pipe, even more powerful vibration prevention measures are applied
- Furthermore, the arm pipe uses a thin silver wire of low resistance, and silk roll is used for the coating of the flow line, ultimately damping it with vibration proof materials
- Around the weight, a quadruple damper system using different materials has been adopted, and vibration absorption is achieved over a wide range.
Specification
| MODEL |
MH-124S Premium |
| Balancing |
Static Balancing |
| Total Length (*1) |
340mm |
| Effective Length (*2) |
305mm |
| Practical Length (*3) |
290mm |
| Offset Angle |
20 ° |
| Adaptable cartridge weight(incl headshell） |
12～31g(40g) |
| Total weight |
1.12kg |
| Overhung |
15mm |
| Tracking weight range |
0.5g (Minimum scale) – over 10g (5g/360 °rotation) |
| Adjustable height (*4) |
41～70mm |
| Headshell weight |
12g (Incl.screws and lead wires) |
| Shaft dimensions to mounting base |
16mmΦ |
| Mounting hole size |
30mmΦ |
| Fixing depth size |
Up to 20mmt (Another size is available) |
(*1) : From counter weight shaft end headshell terminal.
(*2) : From centre of tonearm Base to stylus tip.
(*3) : From centre of tonearm Base to centre of turntable)
(*4) : From plinth surface to horizontal height of arm tube
|
