Specification:

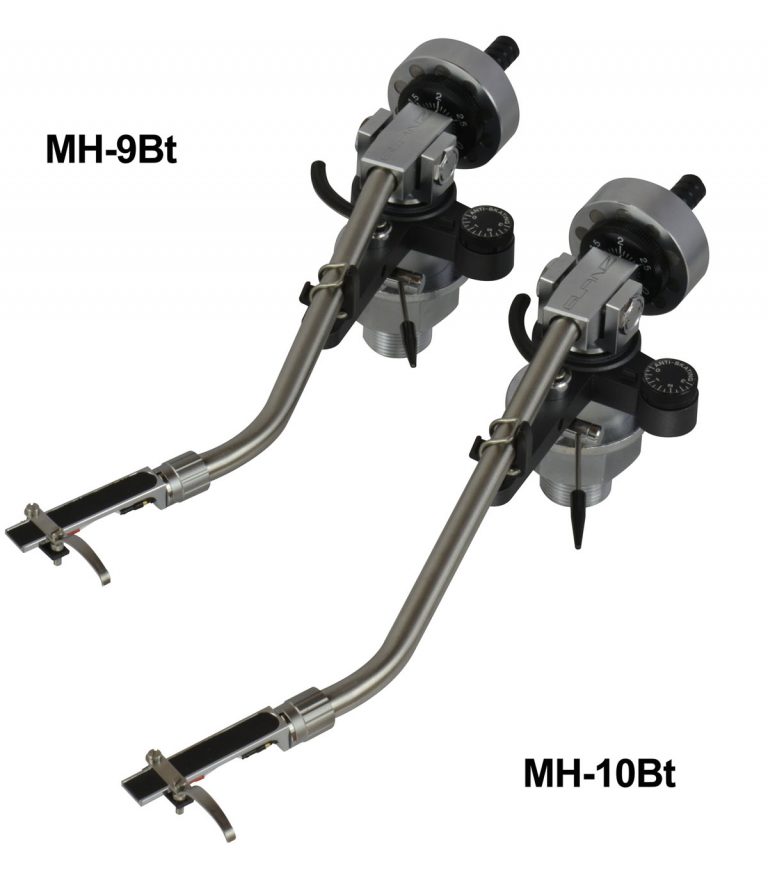

| MODEL |
MH-9Bt |
MH-10Bt |
| Balancing |
Static Balancing |
| Total Length (*1) |
252mm |
277mm |
| Effective Length (*2) |
229mm |
254mm |
| Practical Length (*3) |
214mm |
239mm |
| Offset Angle |
23 ° |
22 ° |
| Adaptable cartridge weight(incl headshell） |
16～43g |
14～40g |
| Total weight |
760g |
795g |
| Overhung |
15mm |
15mm |
| Tracking weight range |
0.25g (Minimum scale) – over 6g (3g/360 °rotation) |
| Adjustable height (*4) |
41mm～ |
| Headshell weight |
12g (incl.screws and lead wires) |
| Shaft dimensions to mounting base |
Φ16mm |
| Mounting hole size |
Φ24mm |
| Fixing depth size |
Up to t29mm (Another size is available) |
(*1) : From counter weight shaft end headshell terminal.
(*2) : From centre of tonearm Base to stylus tip.
(*3) : From centre of tonearm Base to centre of turntable)
(*4) : From plinth surface to horizontal height of arm tube
|
