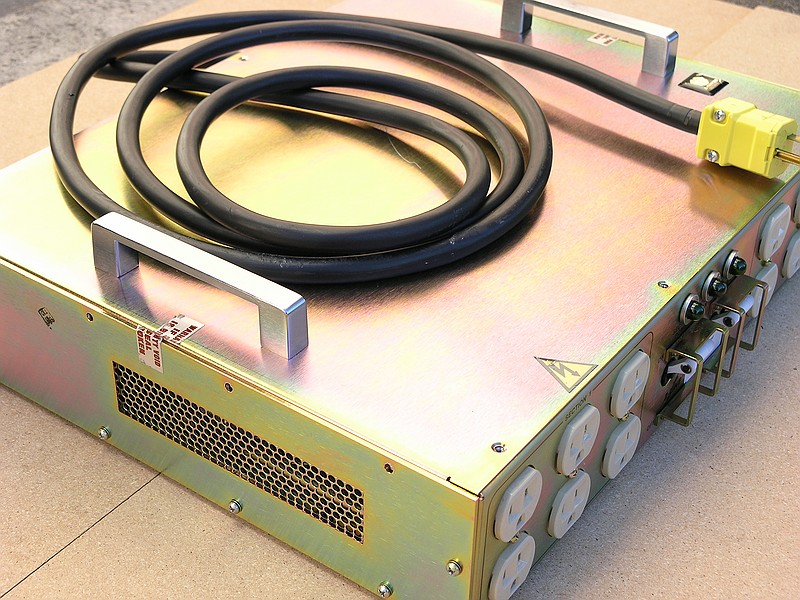

M150 Dual Isolation Transformer 2000W AC Power Conditioner
M150 2000W M150 Dual Isolation Transformer / Power Conditioner $ 980.00
Physical dimension:
Height 3.5 "
Depth 17"
Width 19"
Weight: 75 lbs
Cabinet: 16 gauge
Price: $980
Monarchy Audio M150 Dual Isolation AC Supply
AC In/Out: 110 to 120 Volt, 20 Amps
NEMA Outlets: 12
Maximum load: 2,000 Watts

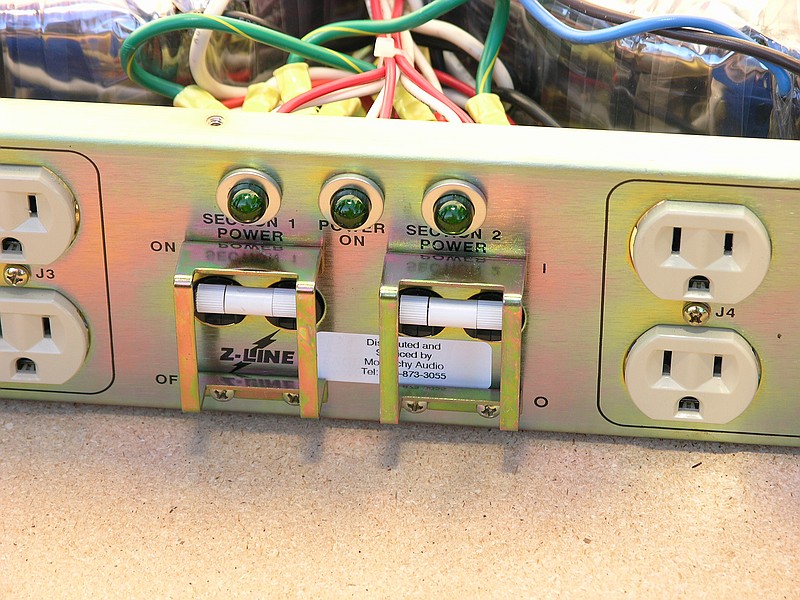

Overload Protection: (2) Two pole 15 Amp electromagnetic
circuit breakers, one per section of 6 receptacles.
FILTERING:
AC input is filtered in the following sequence:

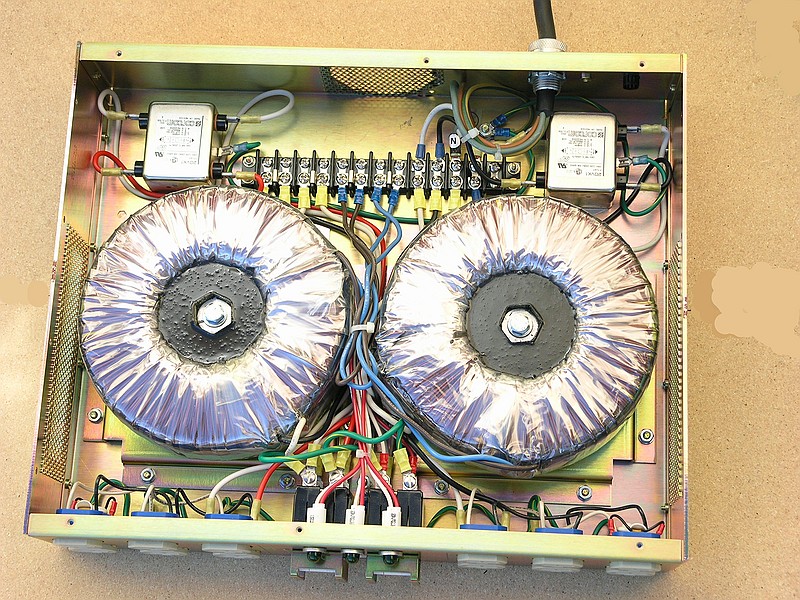

AC In----EMI/RFI filter----1st Toroidal Isolation Transformer-----
2nd Toroidal Isolation Transformer----EMI/RFI Filter----
Out (with Spike/Surge suppression)
The Filtering applies to both Common Mode(Line to Ground) and differential
Mode (Line to Line)
Each of the Isolation Transformers can handle 2KV.
They serve more than just noise and interference
blocking, but also as an energy storage device
that results in stronger and deeper bass response
in the audio system that plugs into it.
They also provide a cleaner, more stable picture
if plasma, CRT, LCD or DLP HDTV’s are plugged into it.
The double EMI/RFI filters ensure all cell phone
signals, radio frequency interference are blocked.
For optimal performance, we recommend plugging
this AC Supply into a devoted AC Outlet with
at least 20 amps rating. Please ensure the AC socket has
clean metal contact surfaces. If in doubt, consult Monarchy Audio
(email: monarchy@earthlink.net) or a qualified electrician. |

|
